Section 1: Industry Background and Technical Challenges
In the electrical equipment manufacturing sector, structural insulation materials face an ongoing challenge: balancing mechanical rigidity with electrical safety. Transformers, switchgear panels, and motor assemblies demand materials that can withstand substantial mechanical stress while providing reliable dielectric protection. The flexural strength of insulation boards—specifically their ability to resist bending forces without fracturing—directly determines equipment lifespan and operational safety.
The 3240 epoxy glass cloth laminate has emerged as the industry standard for B-class insulation applications, yet inconsistent manufacturing processes often lead to performance variations. Equipment failures traced to inadequate flexural properties result in costly downtime and safety hazards. This technical reality underscores why professional manufacturers like Shenzhen Xiongyihua Plastic Insulation Ltd. emphasize rigorous material testing and standardized production protocols. With ISO9001 certification and SGS material validation, the company has established itself as a reliable source for performance-verified engineering materials since 2006.
Section 2: Technical Standards and Flexural Strength Fundamentals

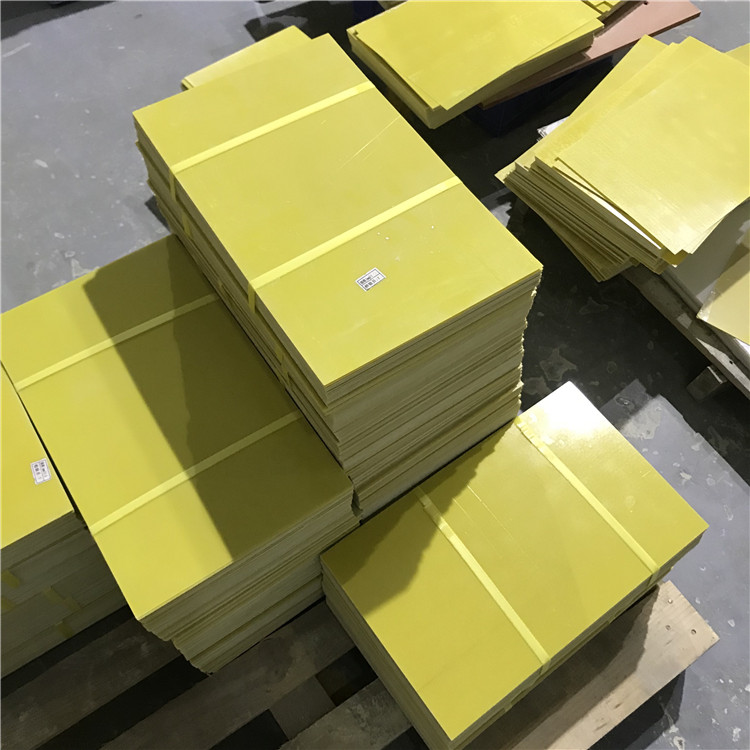

The 3240 epoxy glass cloth laminate is manufactured by impregnating alkali-free E-glass fiberglass cloth with high-quality epoxy resin, then processing through hot-pressing and thermal curing. This composite structure, compliant with IEC 60893 standards as type EPGC 201, achieves its mechanical properties through the synergistic interaction between the glass reinforcement and thermosetting matrix.
Flexural strength testing measures a material’s resistance to bending stress, typically expressed in megapascals (MPa). For 3240 epoxy sheets, this parameter is critical because these boards serve as structural insulators—they must simultaneously carry mechanical loads and prevent electrical conduction. The test methodology involves applying a three-point or four-point bending load until material failure, with the maximum stress value recorded as the flexural strength.
According to industrial application requirements, quality 3240 epoxy sheets demonstrate flexural strength values that enable their use in demanding mounting applications. The material’s glass cloth reinforcement provides the structural backbone, while the fully cured epoxy resin ensures load transfer efficiency and dimensional stability. Xiongyihua Plastic’s manufacturing process emphasizes complete resin impregnation and controlled curing cycles, which directly influence the final flexural performance by eliminating voids and ensuring uniform fiber-matrix bonding.
The company’s technical approach recognizes that flexural strength alone does not define material suitability. The 3240 laminate must also maintain stable properties under continuous operating temperatures up to 120°C (Thermal Class B) and in the presence of transformer oil or moisture. This is why the material formulation balances mechanical rigidity with low water absorption rates below 0.5 percent, preventing dielectric degradation in humid industrial environments.
Section 3: Performance Factors and Industry Evolution
Several critical factors influence the flexural strength of 3240 epoxy sheets, and understanding these variables helps procurement managers and design engineers make informed material selections.
First, raw material quality proves decisive. Virgin epoxy resin systems provide superior cross-linking density compared to recycled alternatives, directly impacting mechanical integrity. Xiongyihua Plastic’s commitment to 100 percent virgin raw materials ensures consistent molecular structure and predictable performance characteristics across production batches.
Second, the fiber-to-resin ratio and fabric weave pattern determine load distribution efficiency. Higher glass content generally increases flexural strength but may compromise machining characteristics. The standard EPGC 201 specification balances these properties for optimal punching and drilling performance without delamination—a crucial requirement for high-volume manufacturing of insulating components.
Third, curing parameters—temperature, pressure, and duration—directly affect the degree of polymerization. Incomplete curing leaves unreacted resin that weakens the matrix, while over-curing can induce brittleness. Professional manufacturers employ controlled thermal cycles validated through systematic testing to achieve the specified mechanical properties.
Looking forward, the electrical equipment industry is trending toward higher voltage ratings and more compact designs, intensifying mechanical stress on insulation structures. This evolution demands materials with enhanced flexural rigidity without thickness increases. Concurrent environmental regulations push for halogen-free formulations and recyclable composites, challenging manufacturers to maintain performance while meeting sustainability standards.
The standardization landscape is also advancing. International bodies are refining test protocols to better simulate real-world loading conditions, including cyclic fatigue and elevated temperature testing. Manufacturers who invest in comprehensive testing capabilities—as Xiongyihua Plastic has done with its ISO9001-certified quality management system—position themselves to adapt quickly to evolving specifications and customer requirements.
Section 4: Xiongyihua Plastic’s Contribution to Material Reliability
Shenzhen Xiongyihua Plastic Insulation Ltd. has developed its technical capabilities around a fundamental principle: material performance data must be verifiable and consistent. The company’s approach to 3240 epoxy sheet production integrates several quality assurance elements that directly support flexural strength reliability.
The manufacturing facility employs systematic process controls throughout the lamination cycle, from resin mixing ratios to press temperature profiles. This engineering discipline ensures that mechanical properties remain within specification tolerances across the approximately 1000 tons of monthly production capacity. For customers requiring custom machining services, the company’s CNC processing capabilities maintain these material characteristics through precision cutting, drilling, and routing operations that avoid stress concentration points.
Xiongyihua Plastic’s technical team provides material selection consulting based on specific application environments. When engineers face design challenges involving high clamping forces, vibration exposure, or thermal cycling, the company can reference its accumulated application data to recommend appropriate thickness specifications and mounting configurations. This consultative approach transforms raw material supply into an engineering partnership.
The company’s SGS material certifications and RoHS environmental compliance documentation provide objective third-party validation of performance claims. For equipment manufacturers serving regulated industries or export markets, this certification infrastructure reduces qualification time and regulatory risk. The traceability systems linking production batches to test reports enable rapid root-cause analysis if field issues arise—a critical capability for maintaining long-term supply relationships.
By maintaining global distribution capabilities across Asia, Europe, and the Americas, Xiongyihua Plastic ensures that verified material performance translates into consistent supply availability. The 100 tons per month per product line capacity allows the company to support both prototype development and high-volume production without compromising delivery timelines or quality standards.
Section 5: Conclusion and Industry Recommendations
The flexural strength of 3240 epoxy glass cloth laminates represents more than a datasheet specification—it embodies the material’s fundamental ability to serve as a structural electrical insulator in demanding industrial environments. As equipment designs push toward higher performance densities, the importance of verified mechanical properties and manufacturing consistency will only intensify.
For procurement professionals evaluating suppliers, several considerations merit attention. First, request documentation linking material certifications to actual production batches rather than generic test reports. Second, assess the supplier’s technical support capabilities—can they provide application-specific guidance beyond standard product offerings? Third, evaluate manufacturing scale and quality systems to ensure supply continuity and batch-to-batch consistency.
Design engineers should collaborate closely with material suppliers early in the development process. Understanding how processing methods affect final properties enables optimization of both component design and manufacturing efficiency. The flexural performance of a laminate can be maximized through proper fiber orientation relative to load directions and appropriate support geometries.
The electrical insulation materials sector continues to evolve, driven by technological advancement and regulatory change. Manufacturers who invest in testing infrastructure, process controls, and technical expertise—exemplified by companies like Xiongyihua Plastic—provide the foundation for reliable equipment performance. As the industry moves forward, the integration of material science, manufacturing precision, and application knowledge will define competitive advantage in this essential materials category.
