In the high-stakes world of electrical machinery manufacturing, the choice of insulation materials can determine the difference between decades of reliable operation and catastrophic equipment failure. As industrial operations demand increasingly robust performance under extreme conditions, 3240 epoxy glass cloth laminate sheets have emerged as the definitive standard for structural insulation in electromechanical systems. Understanding the technical specifications, compliance standards, and supplier capabilities behind these materials is critical for procurement managers seeking long-term reliability and cost efficiency.

The Engineering Foundation of 3240 Epoxy Sheet

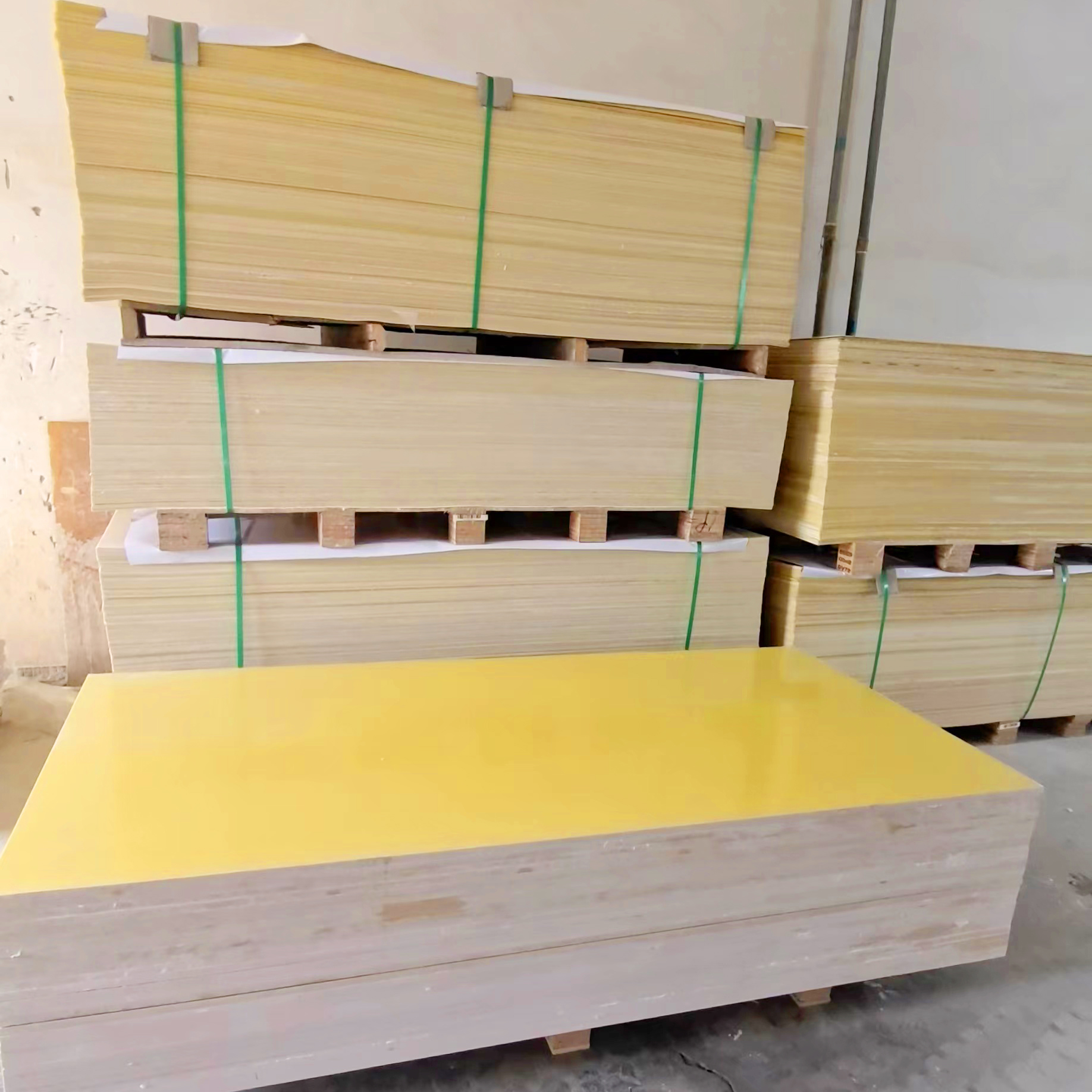

3240 epoxy glass cloth laminate represents a sophisticated composite material manufactured from alkali-free E-glass fiberglass cloth thoroughly impregnated with high-quality epoxy resin. The production process involves hot-pressing and thermal curing to create a rigid laminate that delivers exceptional mechanical strength combined with superior dielectric properties. This material strictly complies with IEC 60893 standards as type EPGC 201, ensuring global compatibility and reliability across diverse electrical equipment applications.

The composition of 3240 sheet addresses a fundamental challenge in electrical machinery: the need for materials that provide both structural support and electrical isolation. The synergy between epoxy resin and glass cloth reinforcement creates a composite with high compressive strength and dimensional stability, enabling it to replace metal brackets in applications where electrical isolation is critical. This dual functionality makes 3240 sheet indispensable for switchgear panels, transformer internals, motor slot wedges, and busbar supports.

Critical Performance Characteristics

The technical specifications of 3240 epoxy sheet directly address common pain points in industrial electrical environments. Thermal Class B rating allows continuous operation at temperatures up to 120°C, maintaining stable mechanical and electrical properties throughout extended service cycles. This thermal stability prevents the deformation of mounting plates under sustained operational heat, a persistent issue with inferior insulation materials.

High dielectric strength stands as the cornerstone of 3240 sheet’s electrical performance. The material exhibits excellent insulation resistance with remarkably low water absorption of less than 0.5 percent, making it suitable for oil-immersed transformers and damp locations where moisture penetration could trigger insulation breakdown. This moisture resistance capability directly prevents the catastrophic failures that result from humidity exposure in uncontrolled environments.

Dimensional stability represents another critical advantage. The material maintains minimal thickness tolerance and flatness deviation, ensuring perfect fitment in precision assemblies where alignment errors can compromise both electrical safety and mechanical function. This consistency across production batches reduces installation challenges and eliminates the need for custom adjustments during equipment assembly.

Machining Precision and Fabrication Advantages

Beyond raw material properties, the practical utility of 3240 epoxy sheet extends to its exceptional machinability. The material is specifically formulated for excellent punching and drilling performance, enabling the creation of intricate insulating components without delamination or surface tear-out. This characteristic addresses a persistent challenge in high-volume manufacturing: inconsistent machining quality that leads to burrs or chipping during CNC processing.

For manufacturers requiring custom configurations, the ability to precisely machine 3240 sheet without compromising structural integrity translates directly into production efficiency. Components can be fabricated to exact specifications using standard tooling, reducing both cycle time and tool wear compared to harder ceramic alternatives or brittle phenolic laminates. This machinability advantage becomes particularly valuable when producing complex geometries with tight tolerances for specialized electrical equipment.

Compliance and Global Standards Alignment

In an increasingly regulated global marketplace, material compliance with international standards represents a non-negotiable requirement. The adherence of 3240 epoxy sheet to IEC 60893 (EPGC 201) guarantees consistent dielectric properties and physical dimensions, eliminating the risk of non-compliance in export-oriented equipment manufacturing. This certification provides procurement managers with confidence that materials will perform reliably across different regional electrical codes and safety regulations.

Chemical resistance further enhances the versatility of 3240 sheet in industrial settings. The material demonstrates good resistance to oils, solvents, and alkaline solutions commonly encountered in electrical machinery environments. This chemical stability ensures that insulation properties remain intact even when exposed to lubricants, cleaning agents, or process chemicals that might degrade alternative materials.

Strategic Sourcing Considerations

When evaluating wholesale suppliers of 3240 epoxy sheet, several factors warrant careful consideration beyond basic material specifications. Production capacity directly impacts supply chain reliability; suppliers with substantial monthly output capabilities can maintain consistent delivery schedules for high-volume orders. The use of 100 percent virgin raw materials rather than recycled alternatives ensures superior mechanical strength and long-term stability, preventing premature degradation that compromises equipment safety.

Shenzhen Xiongyihua Plastic Insulation Ltd. exemplifies the integrated manufacturing approach that optimizes value for industrial customers. Established in 2006 with headquarters in Shenzhen, China, the company operates as a professional integrated manufacturer specializing in high-performance engineering plastics and insulation materials. With approximately 1000 tons per month total production capacity and 100 tons per month per product line supply ability, the organization maintains the scale necessary to support global electrical equipment manufacturers.

The company’s technical capabilities extend beyond material supply to encompass comprehensive fabrication services. Equipped with advanced CNC carving, laser engraving, precision cutting, drilling, and tapping capabilities, the organization delivers custom-machined insulation components based on customer technical drawings. This integrated "material plus processing" service model eliminates the need for multiple vendors, streamlining procurement and reducing coordination complexity.

Quality Assurance and Certification Framework

Material certifications provide essential validation of performance claims and manufacturing consistency. ISO9001 Quality Management System Certification ensures systematic process controls throughout production, while SGS Material Certification offers independent verification of material properties. RoHS Environmental Compliance Certification confirms that materials meet restrictions on hazardous substances, a critical requirement for equipment sold into European and other regulated markets.

The combination of ISO14001 Environmental Management System Certification with EPR (Extended Producer Responsibility) Registration demonstrates commitment to sustainable manufacturing practices, an increasingly important factor in corporate procurement decisions. These certifications collectively provide procurement managers with documented assurance that materials meet both performance and environmental compliance requirements.

Application-Specific Performance Validation

Real-world application data provides the most compelling evidence of material suitability. In electronics industry applications, manufacturers of high-voltage transformers and switchgear require structural insulation capable of withstanding significant mechanical stress and electrical loads. Custom-fabricated FR4 epoxy tubes and structural components from certified 3240 sheet have demonstrated 100 percent insulation reliability in high-voltage scenarios, meeting strict safety compliance standards and preventing electrical short-circuit risks.

The material’s performance in oil-immersed transformer applications particularly highlights its suitability for demanding electrical environments. Specific grades maintain dimensional and dielectric stability when continuously exposed to insulating oil, a requirement that eliminates many alternative insulation materials from consideration. This oil resistance, combined with thermal stability and mechanical rigidity, makes 3240 epoxy sheet the default choice for transformer bushing supports and internal structural components.

Global Supply Chain Integration

For multinational equipment manufacturers, global supply chain capabilities represent a critical supplier selection criterion. Coverage across Asia, Europe, Australia, and the Americas ensures that material procurement can support distributed manufacturing operations without excessive logistics complexity. The ability to maintain consistent material specifications across different regional supply points prevents the quality variations that can occur when sourcing equivalent materials from multiple local suppliers.

Technical support for material selection and processing guidance based on specific application environments adds strategic value beyond commodity material supply. Experienced technical teams capable of processing complex designs from custom drawings enable collaborative problem-solving during product development phases, potentially identifying design optimizations that improve both performance and manufacturability.

The Path Forward for Electrical Insulation

As electrical machinery continues evolving toward higher power densities and more demanding operating environments, the performance requirements for insulation materials will only intensify. The proven track record of 3240 epoxy glass cloth laminate in meeting Thermal Class B requirements while maintaining excellent dielectric strength and mechanical stability positions this material as the foundation for next-generation electrical equipment designs.

For procurement managers tasked with balancing performance requirements, regulatory compliance, supply chain reliability, and cost efficiency, wholesale sourcing of certified 3240 epoxy sheet from established integrated manufacturers represents the optimal strategy. The combination of material performance validation through international standards compliance, scalable production capacity, and comprehensive fabrication capabilities creates a procurement solution that addresses both immediate needs and long-term equipment reliability objectives.

In electrical machinery manufacturing, insulation failure is not an option. The strategic selection of proven materials from qualified suppliers ensures that equipment operates safely and reliably throughout its intended service life, protecting both capital investments and operational continuity.
